Your car battery isn’t just a box under the bonnet; it’s the powerhouse that keeps your engine starting, lights glowing, and electronics functioning. One of the best ways to keep tabs on your battery’s health is by monitoring its voltage levels. Voltage acts like a vital sign for your battery, helping you spot issues early and avoid the dreaded moment when your car refuses to start.
Whether you’re a new driver or someone who wants to understand more about car maintenance, these 8 essential tips will give you everything you need to know about car battery voltage, testing methods, and maintenance.
1. What Does Car Battery Voltage Really Mean?
In simple terms, voltage is the electrical pressure inside your battery. A fully charged 12-volt lead-acid battery should measure around 12.6 volts or higher at rest. When the voltage dips below normal, it signals that your battery is either low on charge or potentially failing.
Without proper voltage, your car won’t crank, the alternator won’t recharge effectively, and your electronics could malfunction.
2. The Difference Between Resting and Running Voltage
- Resting Voltage: Measured when the car has been switched off for at least 4–6 hours. A healthy reading is 12.6V–12.8V.
- Running Voltage: Checked while the engine is on. The alternator keeps the battery charged, so you should see 13.7V–14.7V.
If your resting voltage is fine but the running voltage is off, you may have an alternator or charging system problem, not necessarily a bad battery.
3. Common Symptoms of Low Car Battery Voltage
When the voltage starts to dip, your car gives you warning signs before a complete failure:
- Slow engine crank or clicking when starting
- Headlights dimming at idle
- Radio or infotainment resets
- Electrical accessories are working inconsistently
- Battery light on the dashboard
Catching these early can save you from a breakdown.
4. How to Test Car Battery Voltage with a Multimeter
One of the simplest DIY checks is using a digital multimeter:
- Turn off the car and wait a few hours.
- Set the multimeter to DC voltage.
- Connect the red probe to the positive terminal and the black probe to the negative terminal.
- Read the display.
12.6V or more = healthy. Anything lower = weak or discharged.
For a more accurate picture, you can also perform a load test, which shows how the battery behaves under stress.
5. The Role of Temperature in Battery Voltage
Car batteries don’t like extreme weather:
- Cold weather thickens engine oil and slows the chemical reaction inside the battery, lowering voltage output.
- Hot weather evaporates electrolyte fluid and accelerates battery wear, reducing its overall lifespan.
That’s why winter and summer are the seasons when most drivers face starting issues.
6. Key Voltage Levels You Should Remember
Here’s a quick car battery voltage chart:
- 12.6V–12.8V: Fully charged
- 12.4V–12.5V: 75% charged
- 12.0V–12.3V: Weak, recharge soon
- 11.9V or lower: Discharged
- Below 10.5V under load: Likely damaged, needs replacing
These numbers act as your quick guide to judge battery health at a glance.
7. Maintaining Voltage and Battery Health
Testing voltage regularly is just one part of the equation. You can also extend battery life by:
- Cleaning corrosion off battery terminals
- Keeping connections tight and secure
- Avoiding repeated short journeys (which don’t recharge fully)

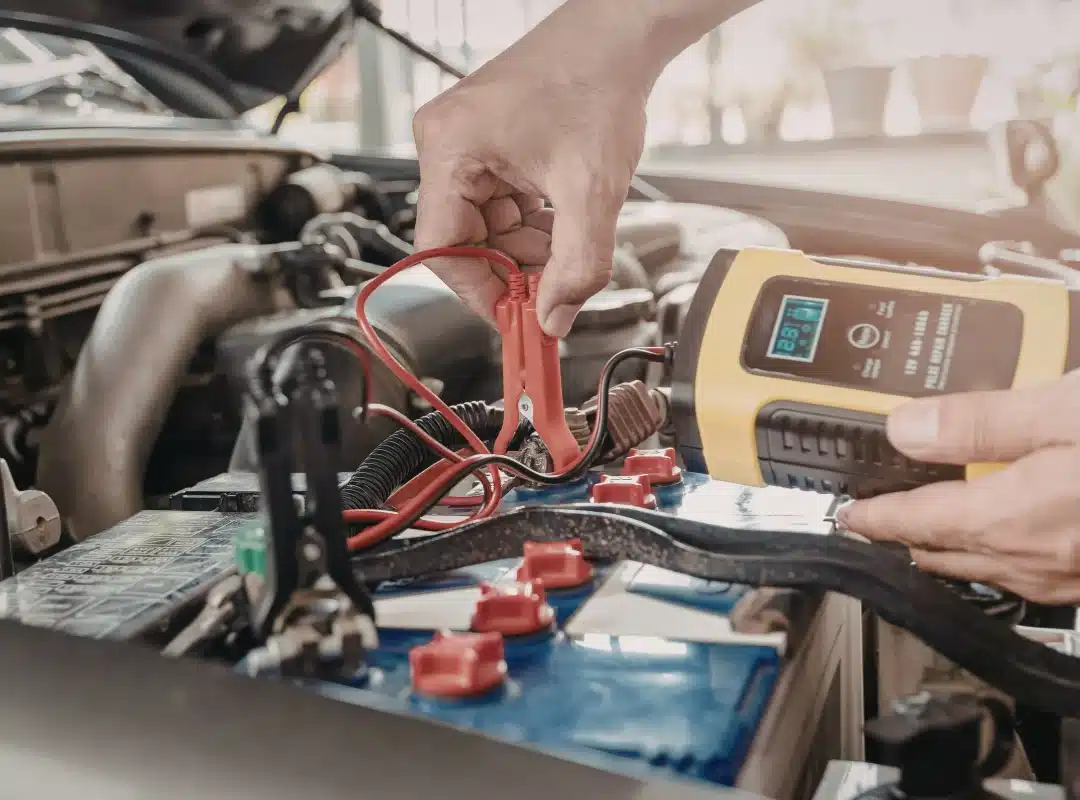

- Using a trickle charger if your vehicle is parked for weeks
- Checking alternator output during routine servicing
These habits help prevent premature battery failure.
8. When It’s Time to Replace the Battery
Even with the best care, batteries have a limited lifespan, typically 3–5 years. If you notice constant low voltage, trouble holding charge, or repeated jump-starts, replacement is the safest option.
Opting for a trusted brand and professional fitting service ensures your new battery provides stable voltage and long-term reliability.
Final Thoughts
Car battery voltage might sound technical, but understanding it is straightforward once you know the basics. It’s not just about numbers, it’s about recognising patterns, testing regularly, and acting before problems become emergencies.
If you’re unsure about your battery health, booking a professional battery test and replacement service with a trusted provider, such as Autoveto MOT, ensures peace of mind. With expert care, you’ll enjoy consistent voltage, reliable starts, and longer battery life.
